PZ971電動排渣閘閥
名稱:PZ971電動排渣閘閥
型號:PZ971
口徑:DN40-DN500
壓力:PN10
材質:鑄鋼、不銹鋼
一、PZ971電動排渣閘閥

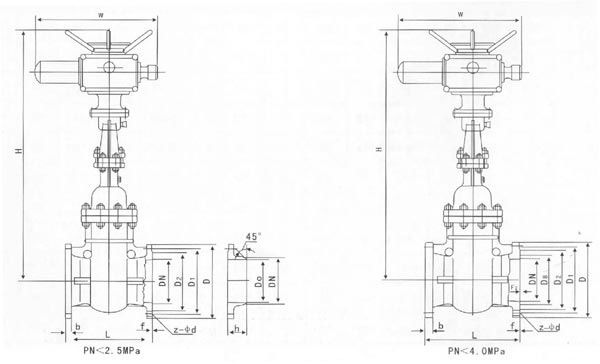

二、PZ971電動排渣閘閥主要尺寸及重量 Main dimensions and weight
|
公稱通徑 DN/mm Nominal diameter |
公稱壓力 DN/mm Nominal pressure |
主要外形尺寸和連接尺寸/mm Main external and connecting dimensions |
電動裝置 Electric dowice |
閥門 重量 /kg Weight |
附法蘭尺寸 Additional flange’s dimensions |
||||||||||||
| L | H | D | D1 | D2 | b | f | D6 | f2 | Z-φd | W | H | Do | Dn | ||||
| 50 | 1.0 | 250 | 618 | 160 | 125 | 100 | 16 | 3 | 4-φ8 | 562 | DZW10 | 53 | 45 | 49 | 58 | ||
| 65 | 270 | 670 | 180 | 145 | 120 | 18 | 3 | 4-φ18 | 562 | DZW10 | 65 | 48 | 64 | 75 | |||
| 80 | 280 | 700 | 195 | 160 | 135 | 20 | 3 | 4-φ18 | 562 | DZW10 | 80 | 50 | 78 | 91 | |||
| 100 | 300 | 785 | 215 | 180 | 155 | 20 | 3 | 8-φ18 | 562 | DZW10 | 96 | 52 | 96 | 110 | |||
| 125 | 325 | 845 | 245 | 210 | 185 | 22 | 3 | 8-φ18 | 607 | DZWl5 | 130 | 60 | 120 | 136 | |||
| 150 | 350 | 990 | 280 | 240 | 210 | 24 | 3 | 8-φ23 | 607 | DZWl5 | 170 | 60 | 145 | 163 | |||
| 200 | 400 | 1080 | 335 | 295 | 265 | 26 | 3 | 8-φ23 | 607 | DZW20 | 242 | 62 | 201 | 223 | |||
| 250 | 450 | 1150 | 390 | 350 | 320 | 28 | 3 | 12-φ23 | 607 | DZW20 | 327 | 65 | 253 | 278 | |||
| 300 | 500 | 1415 | 440 | 400 | 368 | 28 | 3 | 12-φ23 | 755 | DZW45 | 495 | 65 | 303 | 330 | |||
| 350 | 550 | 1665 | 500 | 460 | 428 | 30 | 4 | 16-φ23 | 755 | DZW45 | 627 | 65 | 351 | 382 | |||
| 400 | 600 | 1795 | 565 | 515 | 482 | 32 | 4 | 16-φ25 | 755 | DZW60 | 785 | 65 | 398 | 432 | |||
| 450 | 650 | 1920 | 615 | 565 | 532 | 32 | 4 | 20-φ25 | 825 | DZW90 | 985 | 70 | 450 | 485 | |||
| 500 | 700 | 2080 | 670 | 620 | 585 | 34 | 4 | 20-φ25 | 825 | DZW90 | 115 | 78 | 500 | 535 | |||
| 600 | 800 | 2380 | 780 | 725 | 685 | 36 | 5 | 20-φ30 | 925 | DZWl80 | 1580 | 90 | 600 | 636 | |||
| 700 | 900 | 2585 | 895 | 840 | 800 | 40 | 5 | 24-φ30 | 925 | DZWl80 | 2175 | 90 | 690 | 726 | |||
| 800 | 1000 | 3090 | 1010 | 950 | 905 | 44 | 5 | 24-φ34 | 925 | DZW250 | 2725 | 106 | 790 | 826 | |||
